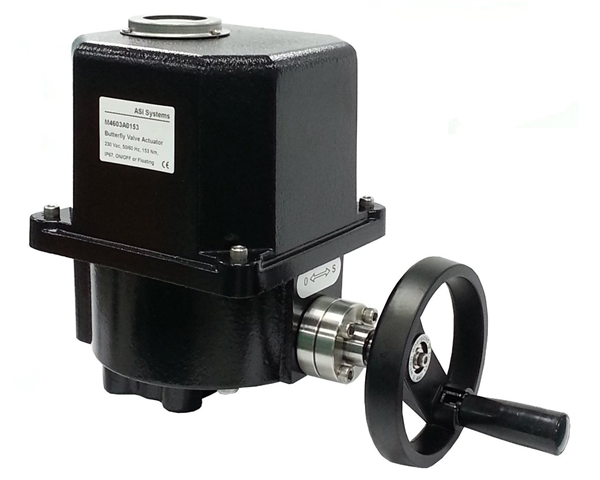

Two/Three-position Control Actuators

The M4600 series butterfly valve actuators operate standard ASI Systems V4200 series butterfly valves in heating, ventilating and air conditioning (HVAC) applications.

They can also be employed for industrial applications, general services and water treatment.

加入询价
  • 产品说明

  • Provided two-position (on/off) control

  • Provided LED and mechanism position indicator for accurate visual reference of butterfly valve position

  • Built-in thermal protection (80 oC) prevent motor burning out

  • Non-clutch design for manual override

  • Manual operation can be operated without clutch or brake upon power voltage

  • Provided 2 auxiliary switches for butterfly valve fully open and fully close

  • Provided anti-condensation heater with thermal protection

  • CE certifications

  • IP67 protection class enclosure for actuator

  • 90 ~ 264 Vac power input (available for 24 Vdc)

  • Provided back-up battery (optional)

  • Provided RS-485 communication function (optional)

  • Provided Bluetooth function (optional)
