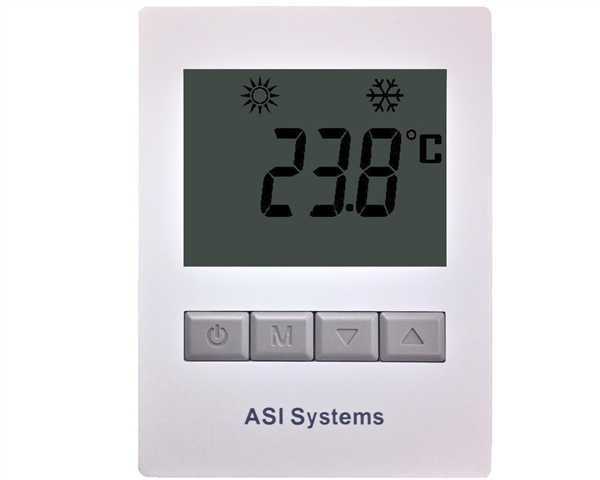

Wall Sensor with Digital Display For Modbus VAV Controller

The WS-062 sensor is ready to be connected to the ASIS/1 series controllers. The ASIS/1 series controllers contains the most frequently used variable air volume (VAV) applications and has personalities for cooling only, heating only and cooling with hot water or electric reheat, and constant or intermittent fan.

加入询价
  • 产品说明

  • Compatible with ASIS/1 series controllers

  • Digital display of sensing temperature and user selected temperature setting on demand

  • Push-button selection of Enable/Disable operation

  • Push-button selection of Occupied, Unoccupied, Setting mode

  • Adjustable high and limits for temperature setpoint

  • Adjustable Occupied/Unoccupied heating and cooling Setpoints, Proportional band, Reset time

  • Adjustable maximum and minimum air flow volume limits

  • Display air flow volume (CFM or CMH) display for VAV terminal units

  • Selected key locking function for remote control application

  • Adjustable calibrating function for temperature sensor

  • Non-volatile memory (EEPROM) retains user settings during power loss

  • Provided self-diagnostic function

  • Using the modular cable for easy connection to controller and trouble free installation

  • Backlight function available(optional)
