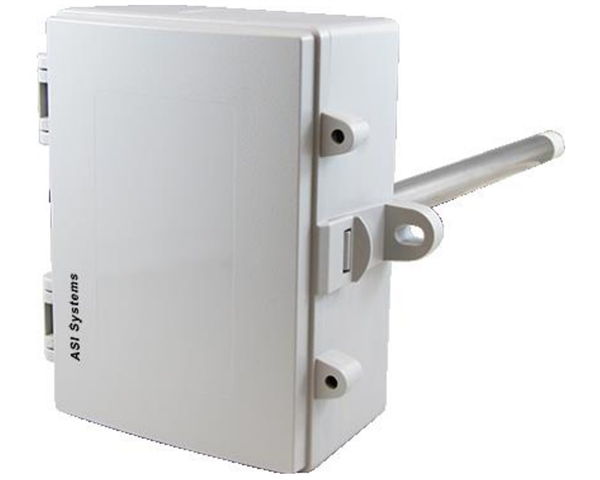

Duct Enthalpy Transmitters with LCD Display

The DPT200 series Duct Enthalpy Transmitters are designed for use in environmental monitoring and control systems where high performance and stability are demanded. It’s state-of-the-art design combines digital linearization and the temperature
compensation with a high accurate and reliable thermoset polymer based capacitance humidity sensor and curve-match NTC thermistor temperature sensor for reliable and accuracy in the most critical applications.

  • 产品说明
  • Enthalpy (En): ± 2 kj/kg (± 1 BTU/lb) (50 %RH at 25 °C)

  • Dry Bulb Temperature (T): ± 0.2 °C (0 to 50 °C)

  • LCD Display:
    Enthalpy: 0 ~ 340 kj/kg (1 kj/kg resolution) or 0 ~ 146 BTU/lb (1 BTU/lb resolution)
    Dry Bulb Temperature: -30.0 ~ 50.0 °C (0.5 °C resolution)

  • High stable RH sensor element

  • Curve-match NTC Thermistor

  • 2 analog outputs

  • BACnet or Modbus communication
