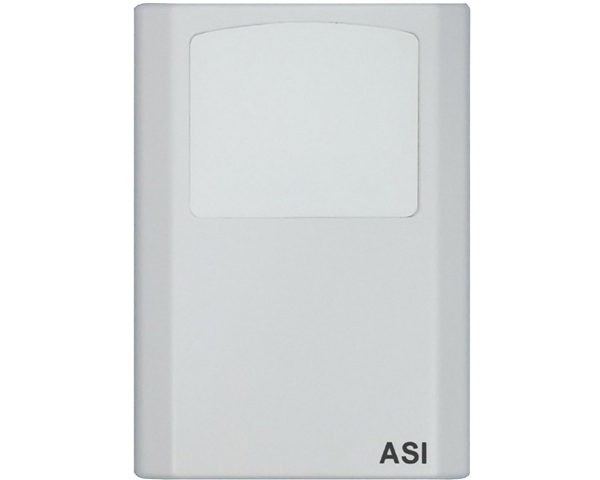

Room Carbon Dioxide Detectors

The CDD100 series Room Carbon Dioxide Detectors uses a highly accurate and reliable Non-dispersive Infrared (NDIR) sensor combined with state-of-the-art digital linearization and temperature compensated circuitry in an attractive, low profile enclosure for room applications to monitor room CO2 levels.

加入询价
  • 产品说明

  • ​Optional features include a resistive temperature sensor output.

  • A linear analog signal output of 4 to 20 mA, 0 to 5 Vdc ​or 0 to 10 Vdc is provided for connection to a  building automation system.

  • 2 button setpoint adjustment, a control relay with programmable setpoint, hysteresis and time delay, and a dry contact override switch.

  • The CO2 sensor incorporates a self-calibration feature to correct CO2 sensor drift.

  • This CO2 sensor is recommended for applications where the CO2 level will be close to normal (400 ppm) at least one hour per day. If the monitored space is occupied 24 hours or consistently maintains higher or lower levels of CO2, it is recommended that this feature be turned off, but yearly calibration will be required.
