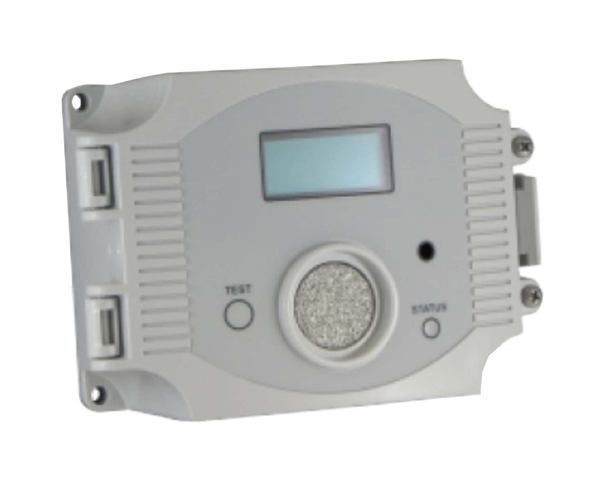

LCD Display Space Carbon Monoxide Detectors

The CMD100 series Space Carbon Monoxide Detectors uses an electrochemical sensor to monitor space CO levels. (Sensor Agency Approvals：Sensor is UL Recognized Component for ANSI/UL-2034, UL-2075, E240671)

加入询价
  • 产品说明

  • The sensing range and output may be scaled to 0 ~ 100, 150, 300, 400 or 500 ppm via the on-board menu.

  • A front panel LCD is standard to ensure easy set-up and operation.
    LCD Display：
    1. Resolution: 1 ppm CO
    2. alpha-number 2 line x 8 character for Display ppm and menu parameters.

  • A linear analog signal output of 4 to 20 mA, 0 to 5 Vdc or 0 to 10 Vdc is provided for connection to a building automation system.

  • Other standard features included a backlight for the LCD, a front panel test switch, status indication and an alarm buzzer. The test function may also control remotely with a digital input signal.

  • The on-board menu allows for local configuration of all device parameters.

  • ​Optional features include one or two alarm relays and/or RS-485 network communications configured for either Modbus or BACnet protocol.
